Name: MTX Audio Polaris RZR PRO XP Stage 5 Audio System
SKU: 544700

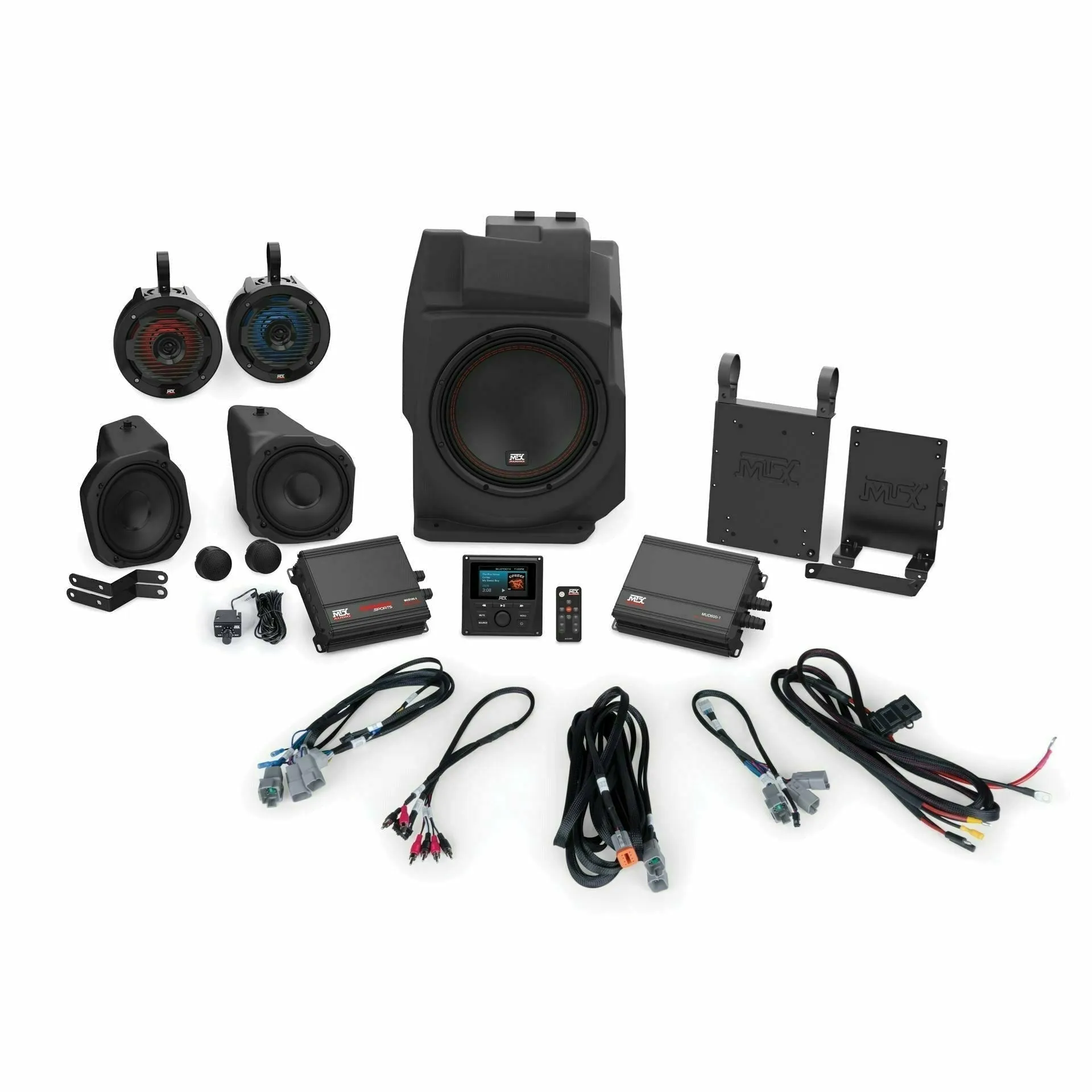

The PROXP-20-THUNDER5 audio kit is a complete plug and play 5-speaker audio system designed for the Polaris RZR Pro XP platform*. This kit fits all models that DO NOT have an installed Ride Command system. The heart of this system is the MTX AWMC3 media receiver that mounts in the upper dash factory panel and provides a full function, feature rich audio experience. Power for the system if provided by the included MUD100.4 4-channel and MUD600-1 monoblock amplifiers.¬†Front audio reproduction is handled by a set of the PROXP-20-FS component speakers. The lower 6 ¬Ω‚Äù rotationally molded speaker pod is designed to install in a matter of minutes and feature integrated RGB lighting while the 1‚Äù soft dome tweeter mounts in the upper dash top factory enclosure. Low end comes from the PROXP-20-SW subwoofer enclosure with its high output 10‚Äù subwoofer in a ported enclosure that mounts in the dash on the passenger side of the vehicle. Rear sound is provided by a pair of our MUD65PL speaker cans which feature integrated RGB lighting in a compact design with plug and play connectivity. Connections are made via integrated quick connect, watertight harnesses designed for harshest of riding environments.¬†*Not Compatible with non-Pro XP Model RZR‚Äôs.

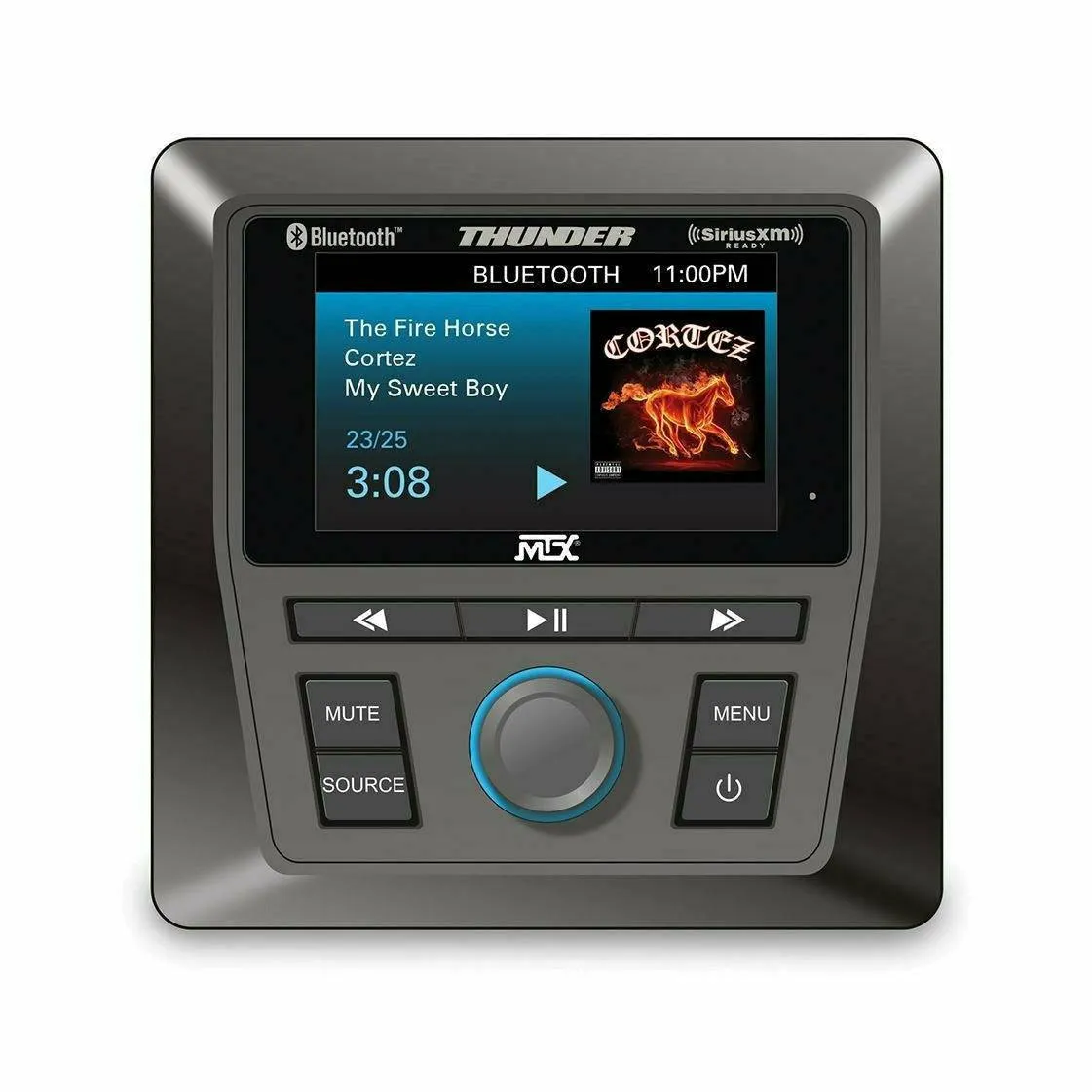

AWMC3*¬†Key Features

3" Full Color TFT Display
SiriusXM Radio Ready**
AM / FM / WB Tuner
Bluetooth Audio Streaming
Internal Power Amplifier
Weather Resistant (IP66)
2 Sets of Preouts (Front / Rear)
Selectable EQ
Backlit Control Buttons
**SiriusXM antenna/receiver and external AM/FM antenna not included.

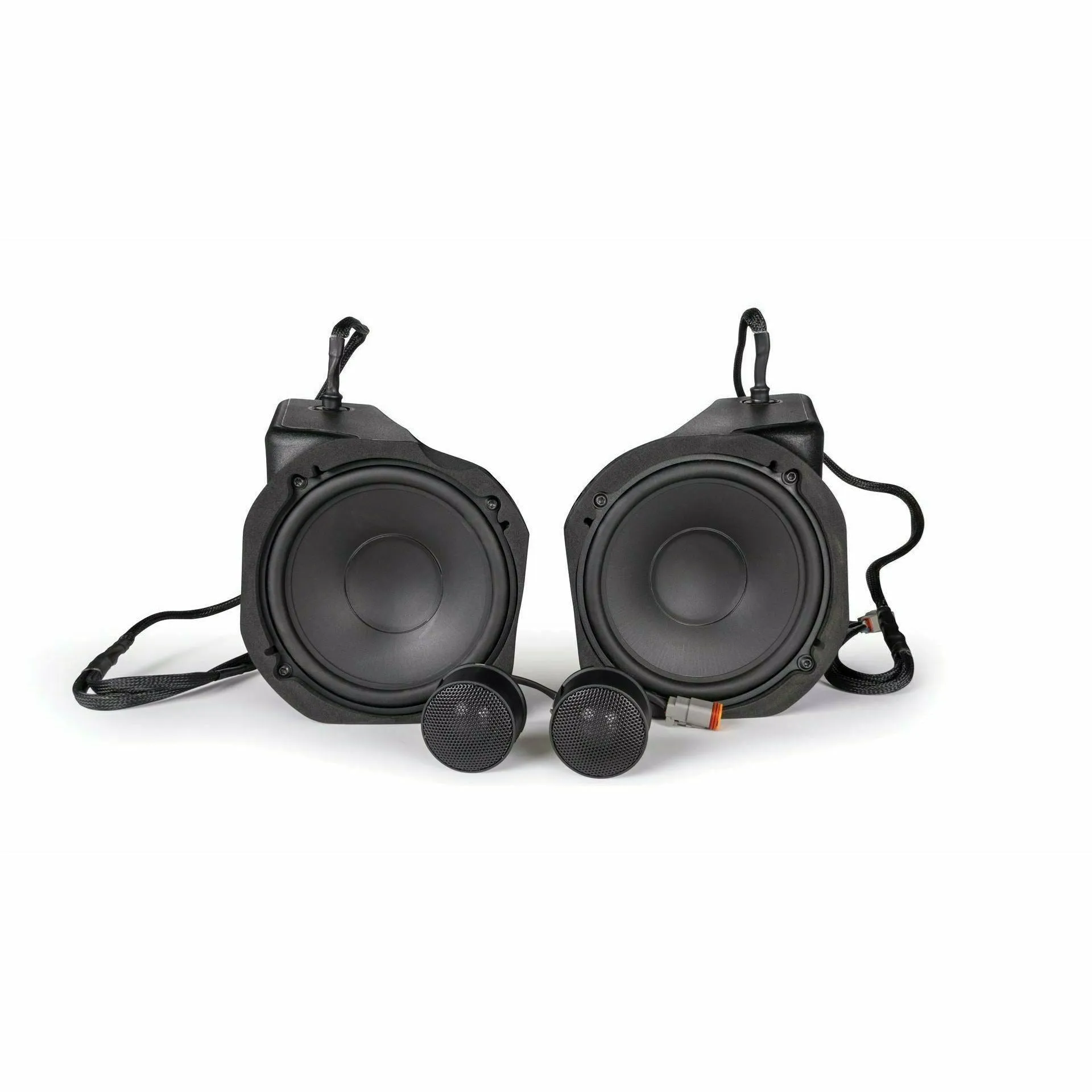

PROXP-20-FS¬†Key Features

All-Weather Construction with UV Inhibitor
Custom Fit for¬†Dash Panel Panel
No Cutting or Drilling Required
6.5" Midrange Speaker
1.0" Teteron Soft Dome Tweeter
75-Watt RMS Power
Integrated RGB Lighting
Fully assembled Out of the Box

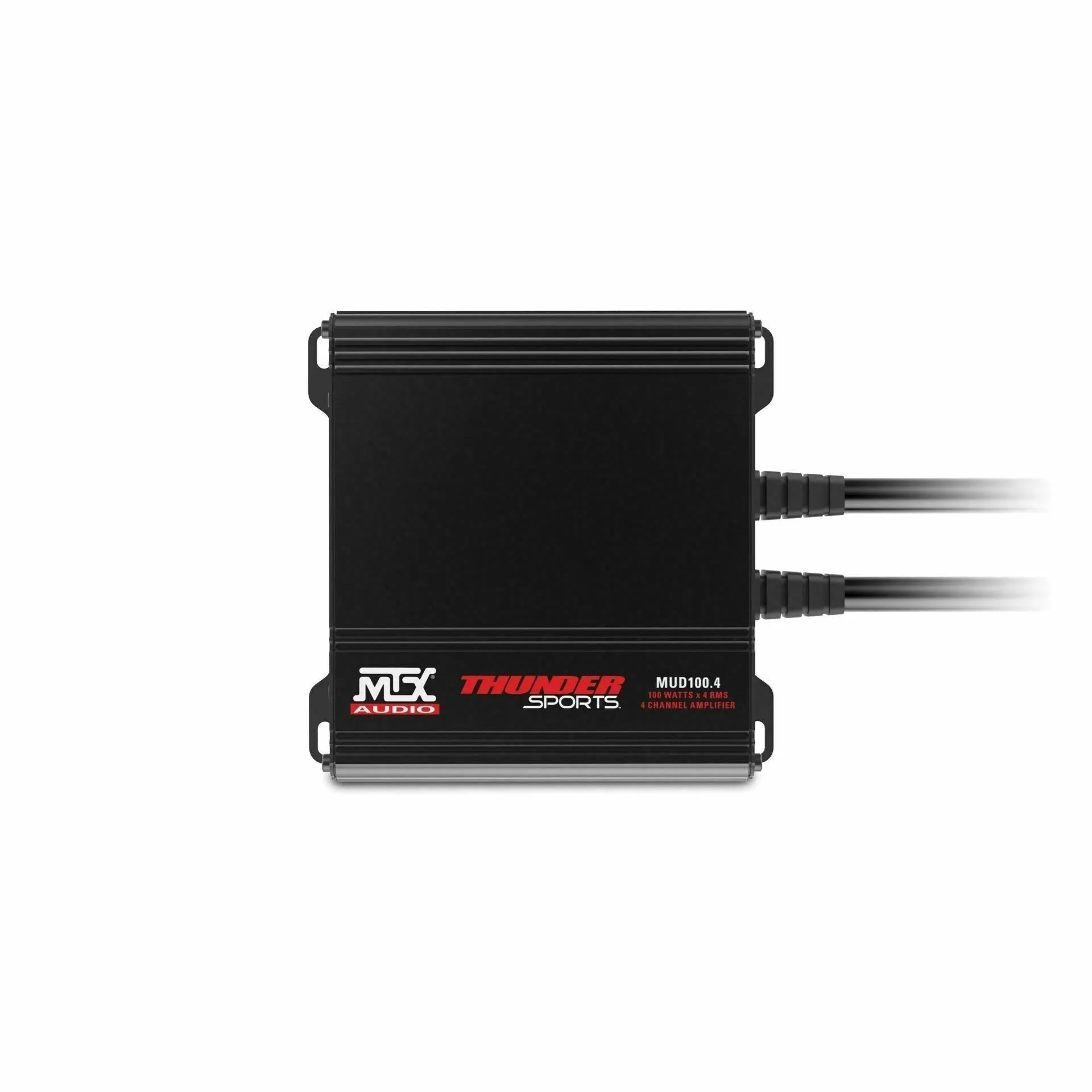

MUD100-4¬†Key Features

Compact Design Enables Installation Anywhere
Conformal Coated Printed Circuit Board that Resists Moisture
Fixed Crossovers
High and Low Level Inputs
400-Watts RMS Power

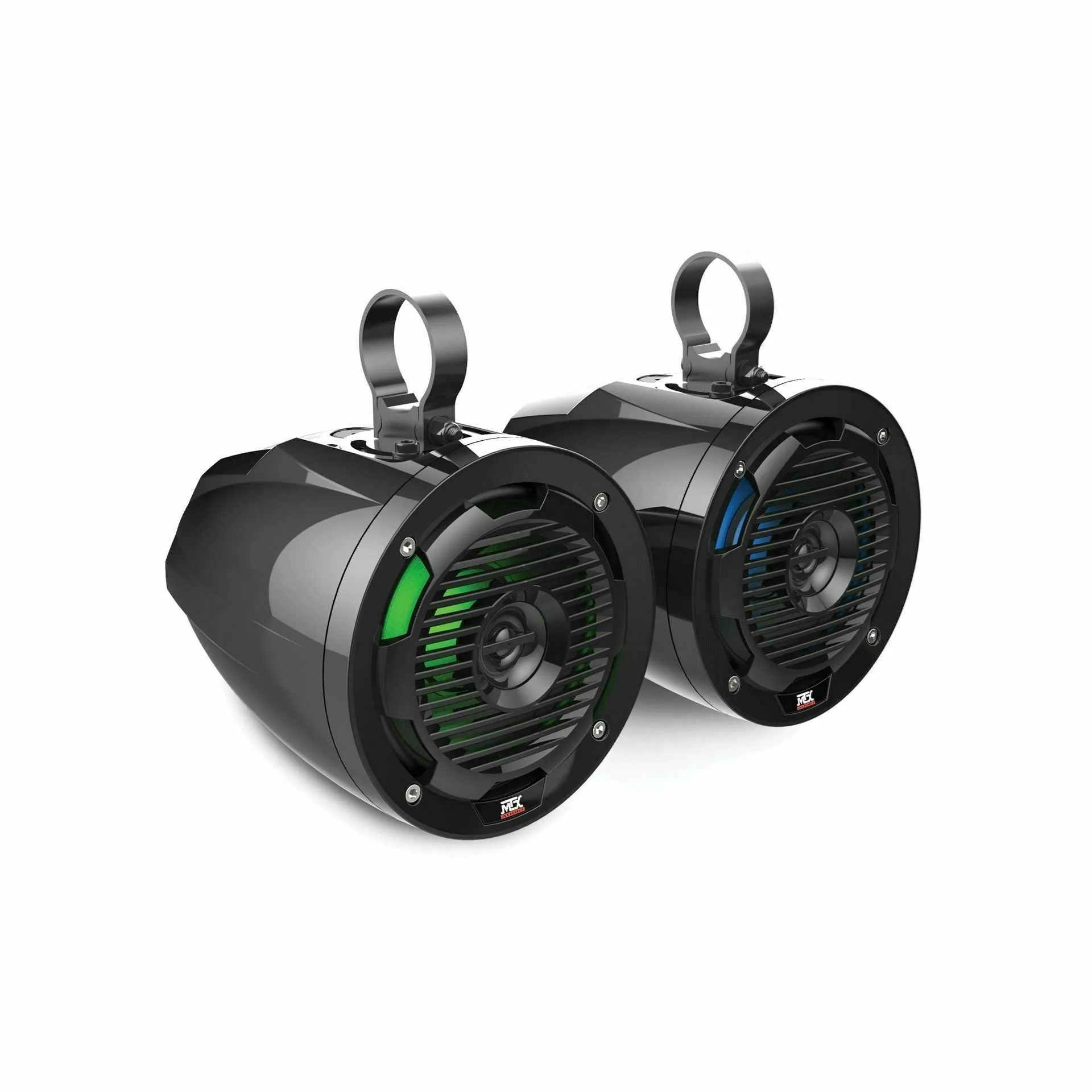

MUD65PL¬†Key Features

Weather Resistant 6.5" Speaker Pods
Fits Bars with Diameters of 1.75", 1.85", and 2"
Internal Crossover Network
ABS Impact Resistant Grille with UV Inhibitor
Integrated RGB Lighting
Optional Remote Control and Wiring Harness Available¬†for Custom¬†Color Creation¬†(MUDLEDC)

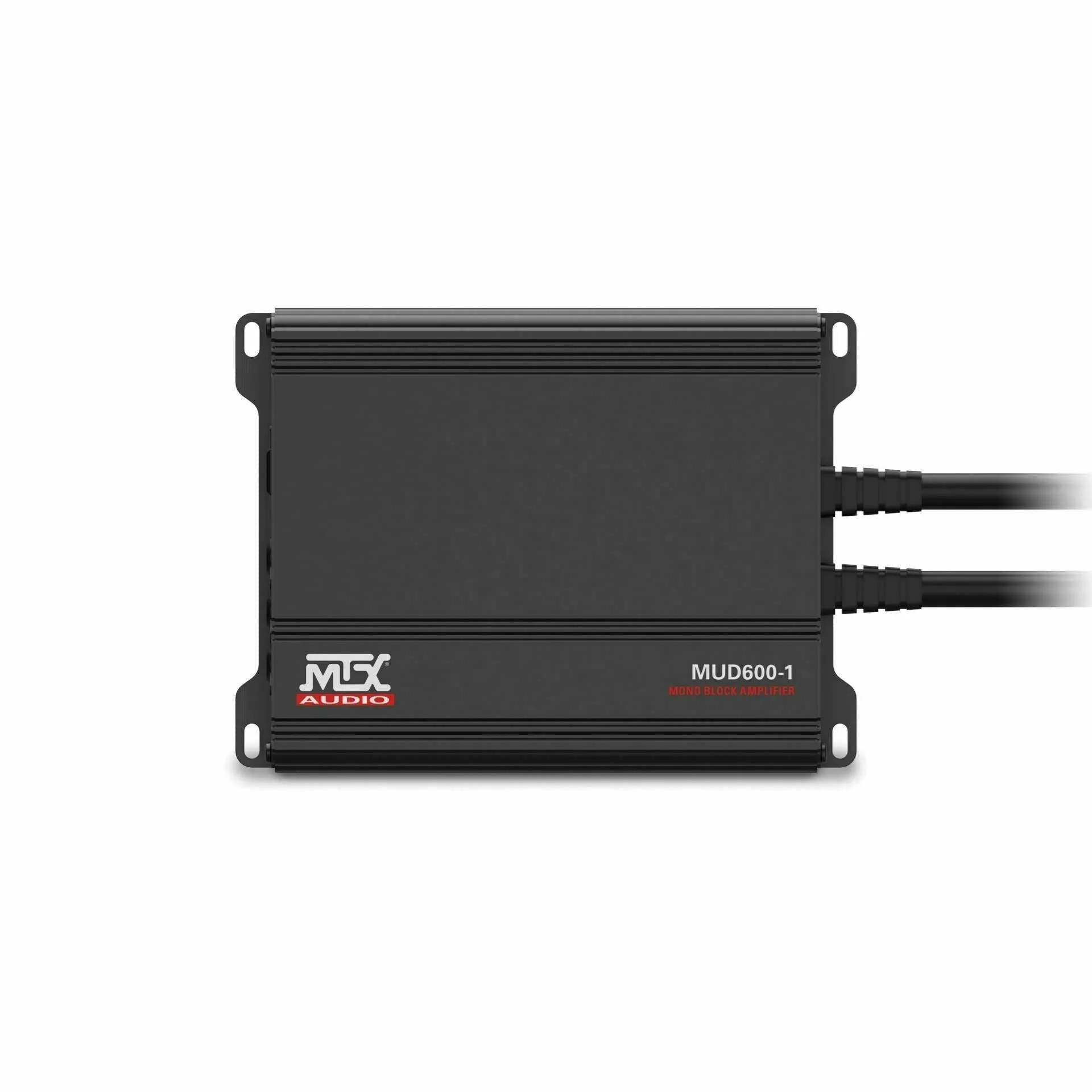

MUD600.1¬†Key Features

High Efficiency Class D Topology
Compact Design Enables Installation Anywhere
Conformal Coated Printed Circuit Board that Resists Moisture
Fixed Crossovers
High and Low Level Inputs
600-Watts RMS Power

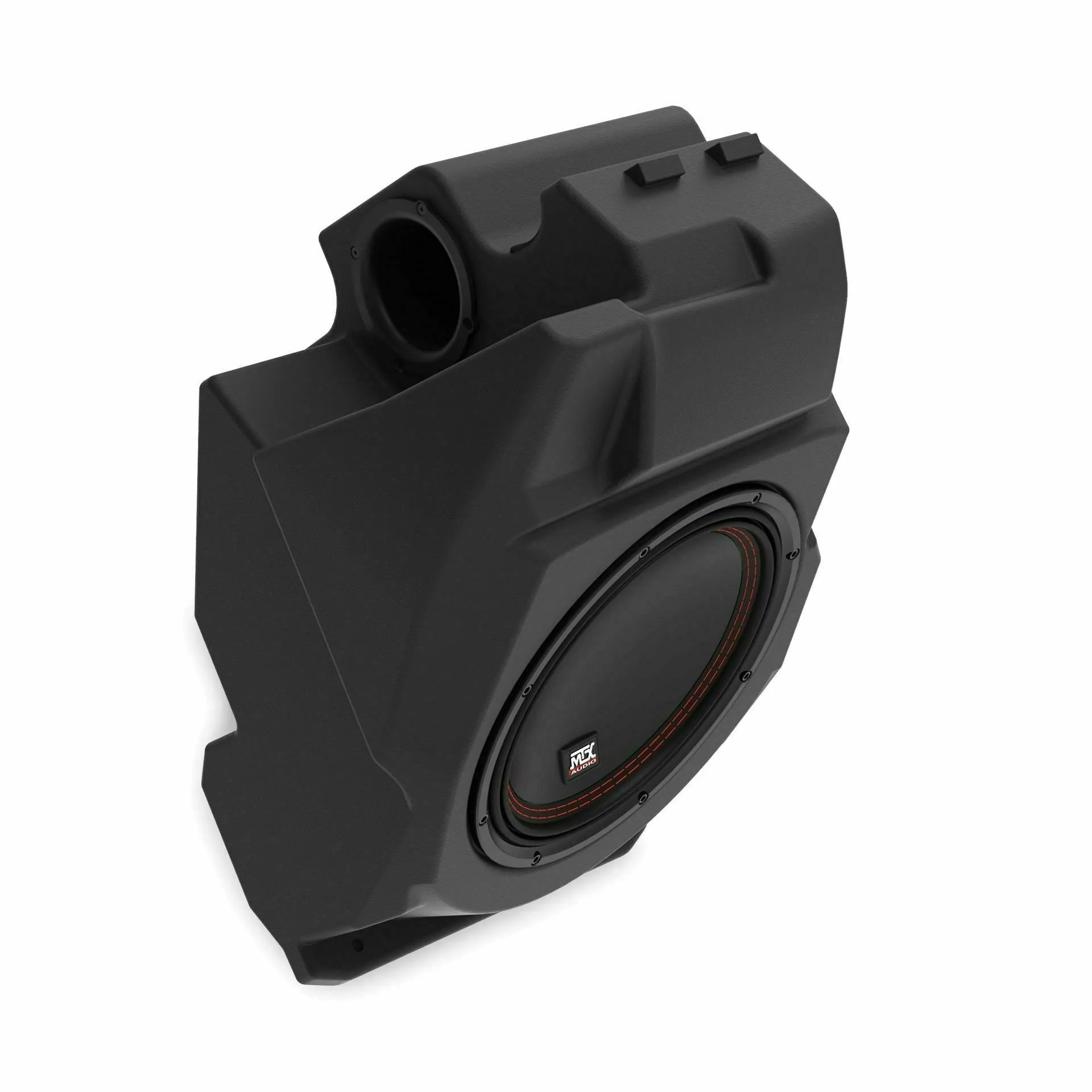

PROXP-20-SW¬†Key Features

10" Custom Fit Subwoofer Enclosure
400-Watt RMS Power
High Mount Ported
Mounts¬†Behind Dashboard on¬†Passenger Side
Quick Installation with Installer Friendly Design
Fully assembled Out of the Box

Plug and Play Connections

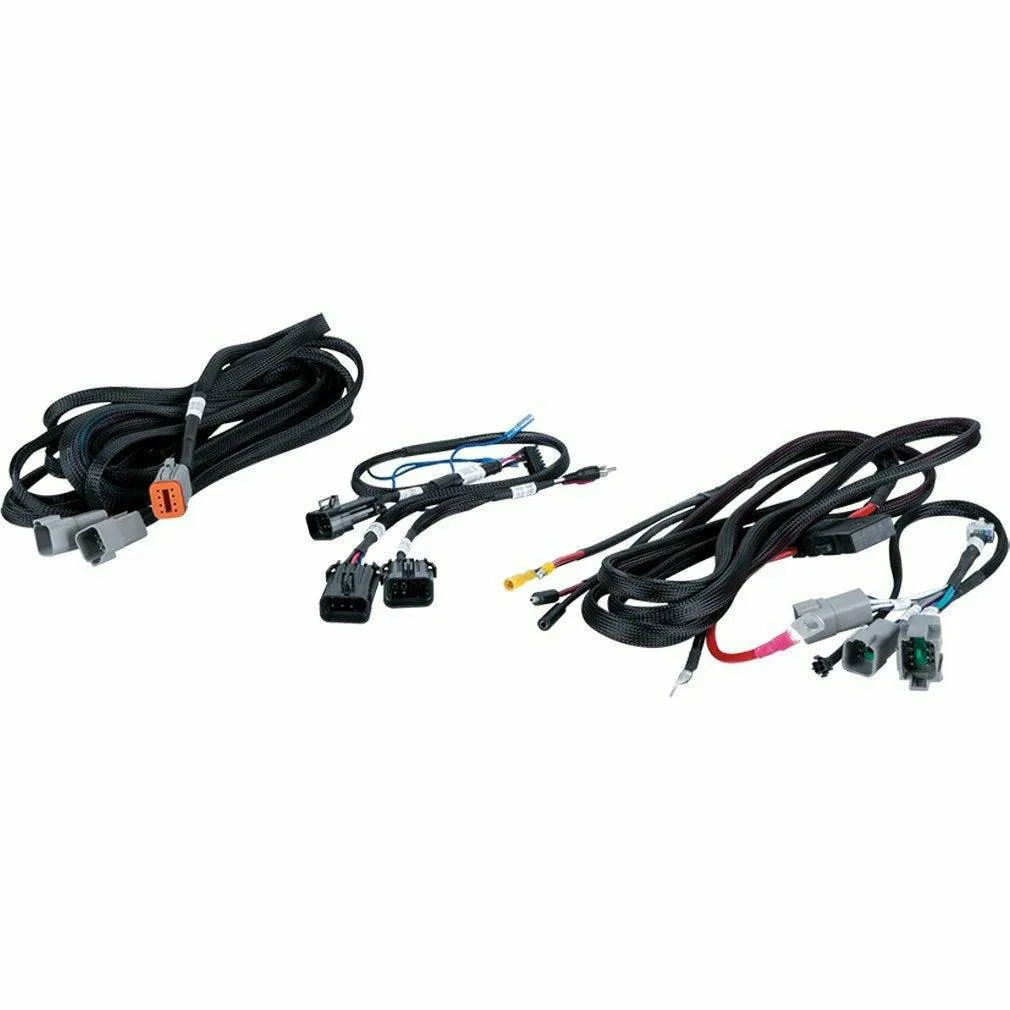

The PROXP-20-THUNDER5 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.
