Name: Giant 2023 Trance X Advanced E Elite 2
SKU: 261471

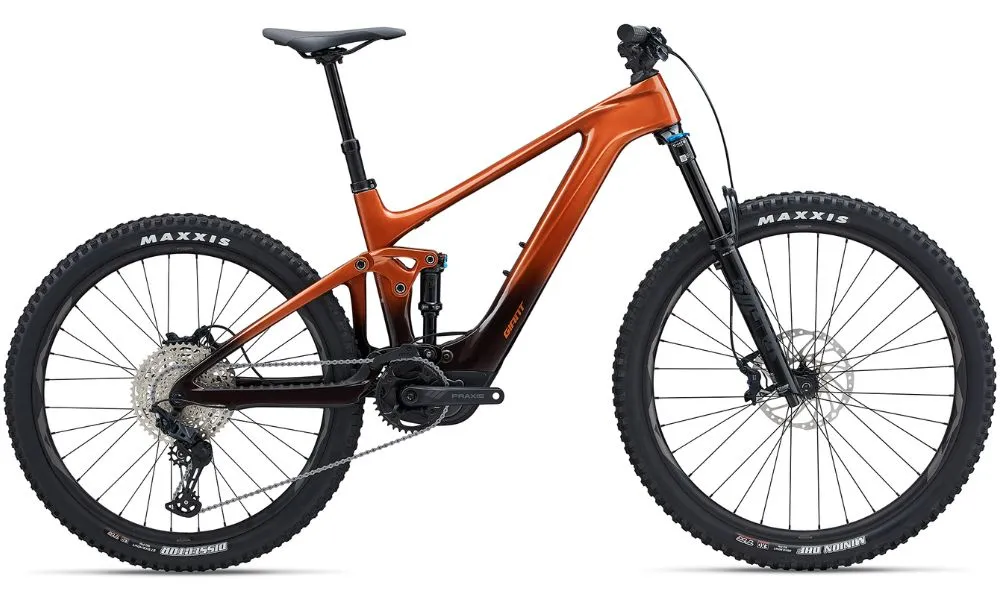

Giant 2023 Trance X Advanced E Elite 2

Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-power E-MTB. A new revolutionary new battery technology minimizes size and weight, while still providing full power. Ride technical trails the way you always dreamed of.

LIGHTER WEIGHT

New EnergyPak 400 battery is designed to be ultra light. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.

ADVANCED COCKPIT CONTROL

RideControl Ergo 3 remote can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.

MORE POWER

Our revolutionary battery cell technology enables the SyncDrive Pro motor to provide full power. With 85Nm torque and weighing just 2.7kg, this results in quicker acceleration and superior climbing capabilities on technical trails.

Specifications

Giant 2023 Trance X Advanced E Elite 2

Frame

Colour: Amber Glow/Cordovan
Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork: Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR
Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned

Drivetrain

Drive Unit: Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set (S:160, M/L: 165, XL:170)
Pedals:
Chain: KMC e.12 Sport, NP/NP, E-bike optimized
Bottom Bracket: NA
Rear Derailleur: Shimano Deore SLX, 12-speed, Shadow
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore SLX
Freewheel/Cassette: Shimano HG-M6100, 10-51T, 12-speed

Wheels

Tyres: [F] Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Wheels/Rims: Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, E-bike optimized
Hubs: Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle

Braking System

Brakes:Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm
Brake Levers: Shimano SLX, I-spec EV

Other

Handlebar: Giant Contact SL 35 Trail, 35x780mm
Stem: Giant Contact SL 35
Saddle: Giant Romero, Neutral
Seat Post: Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Control: Giant RideControl Ergo3, grip integrated remote
Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT display

Geometry

Giant 2023 Trance X Advanced E Elite 2

S

163 cm 174 cm
M

171 cm 182 cm
L

176 cm 186 cm
XL

183 cm 193 cm

		S	M	L	XL
		LOW \| HIGH	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A	SEAT TUBE LENGTH (mm)	400	425	450	475
B	SEAT TUBE ANGLE	77.2° \| 78.0°	76.0° \| 76.7°	76.0° \| 76.7°	76.0° \| 76.7°
C	TOP TUBE LENGTH (mm)	577 \| 575	607 \| 605	636 \| 634	665 \| 663
D	HEAD TUBE LENGTH (mm)	95	100	115	130
E	HEAD TUBE ANGLE	65.7° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°
F	FORK RAKE (mm)	44	44	44	44
G	TRAIL (mm)	113.1 \| 108	113.1 \| 108	113.1 \| 108	113.1 \| 108
H	WHEELBASE (mm)	1194 \| 1195	1215 \| 1212	1244 \| 1244	1275 \| 1275
I	CHAIN STAY LENGTH (mm)	447 \| 447	447 \| 447	447 \| 447	447 \| 447
J	BOTTOM BRACKET DROP (mm)	10	10	10	10
K	STACK (mm)	607 \| 601	611 \| 605	625 \| 619	639 \| 633
L	REACH (mm)	439 \| 447	457 \| 462	480 \| 487	505 \| 513
M	STAND OVER HEIGHT (mm)	726 \| 735	733 \| 742	732 \| 741	741 \| 750
O	STEM LENGTH (mm)	40	40	50	50
P	CRANK LENGTH (mm)	160	165	165	170
Q	WHEEL SIZE	R27.5" / F29"	R27.5" / F29"	R27.5" / F29"	R27.5" / F29"
